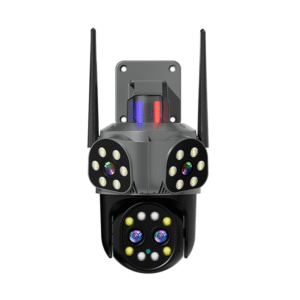

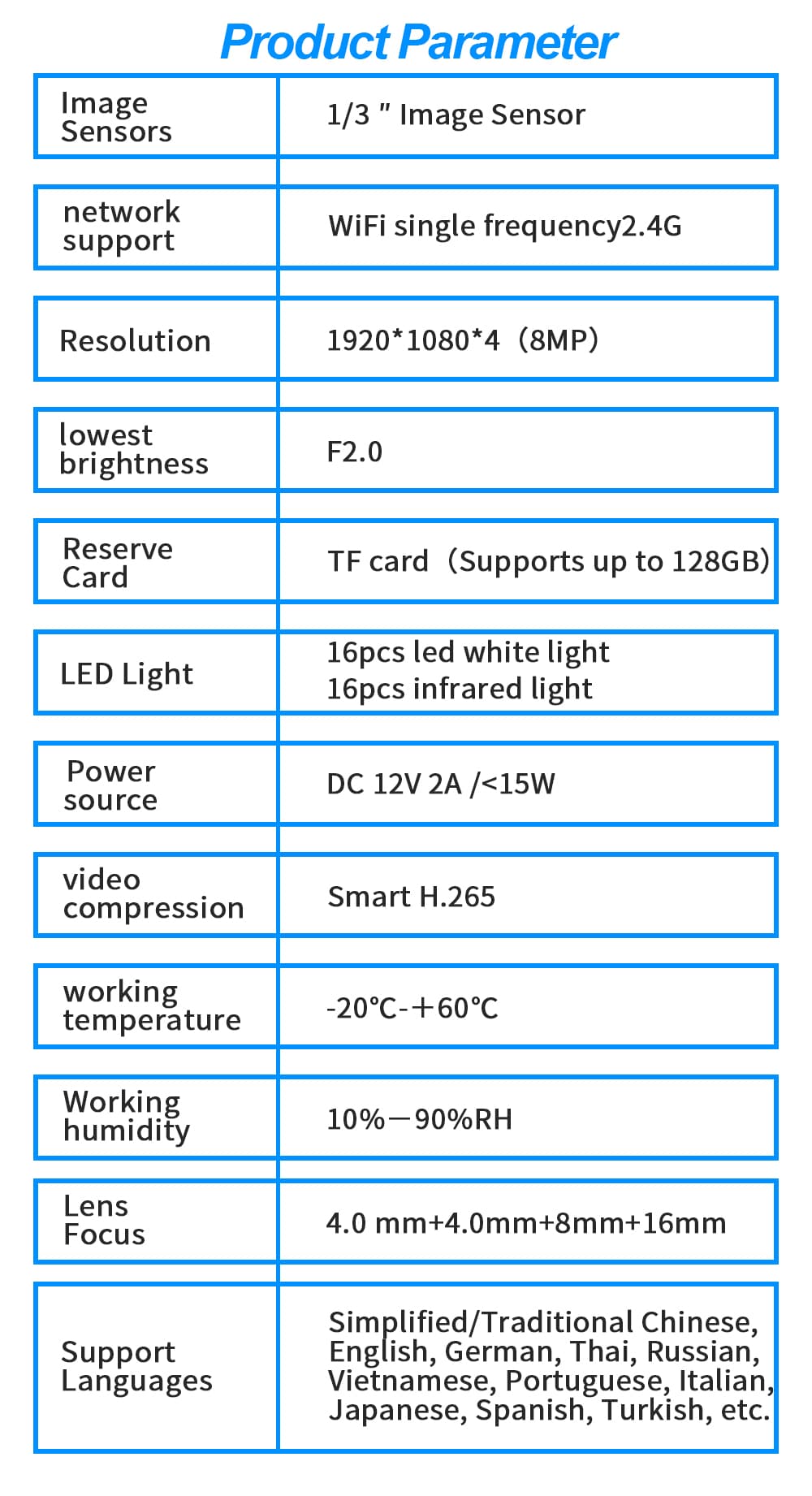

4K Outdoor AI Surveillance Camera

Model: Q840A
Master Chip: XM650v200SD2 + XM650v200SD1
APP Operating System: Android, iOS
Sensor: 1/3.2″ Image Sensor
Compression Format: H.265
Resolution: 1920×1080×4 (8MP)
APP: CareCam Pro

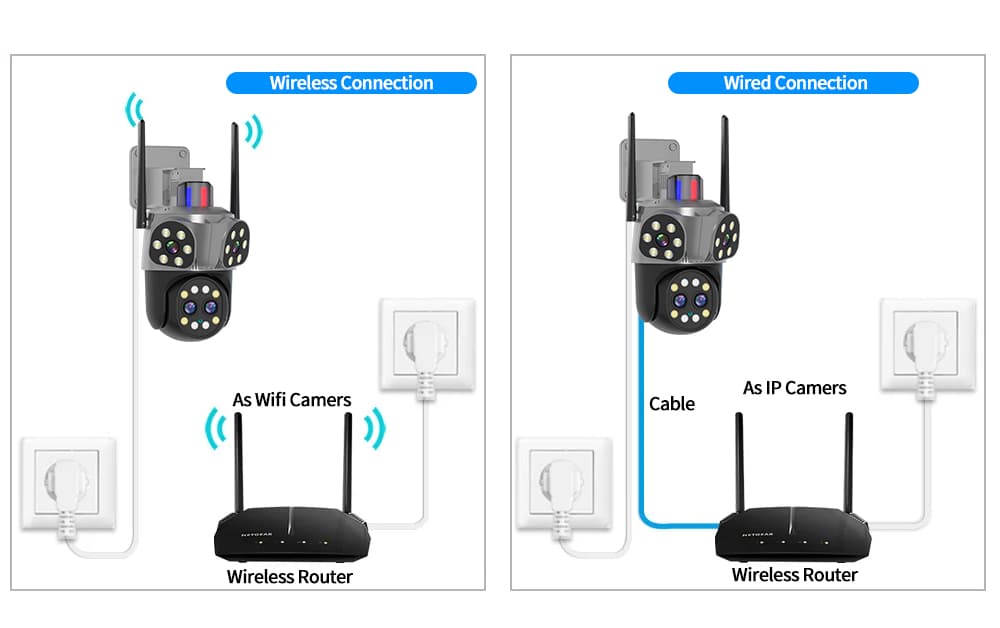

Networking Method: 2.4G Wi-Fi / Bluetooth

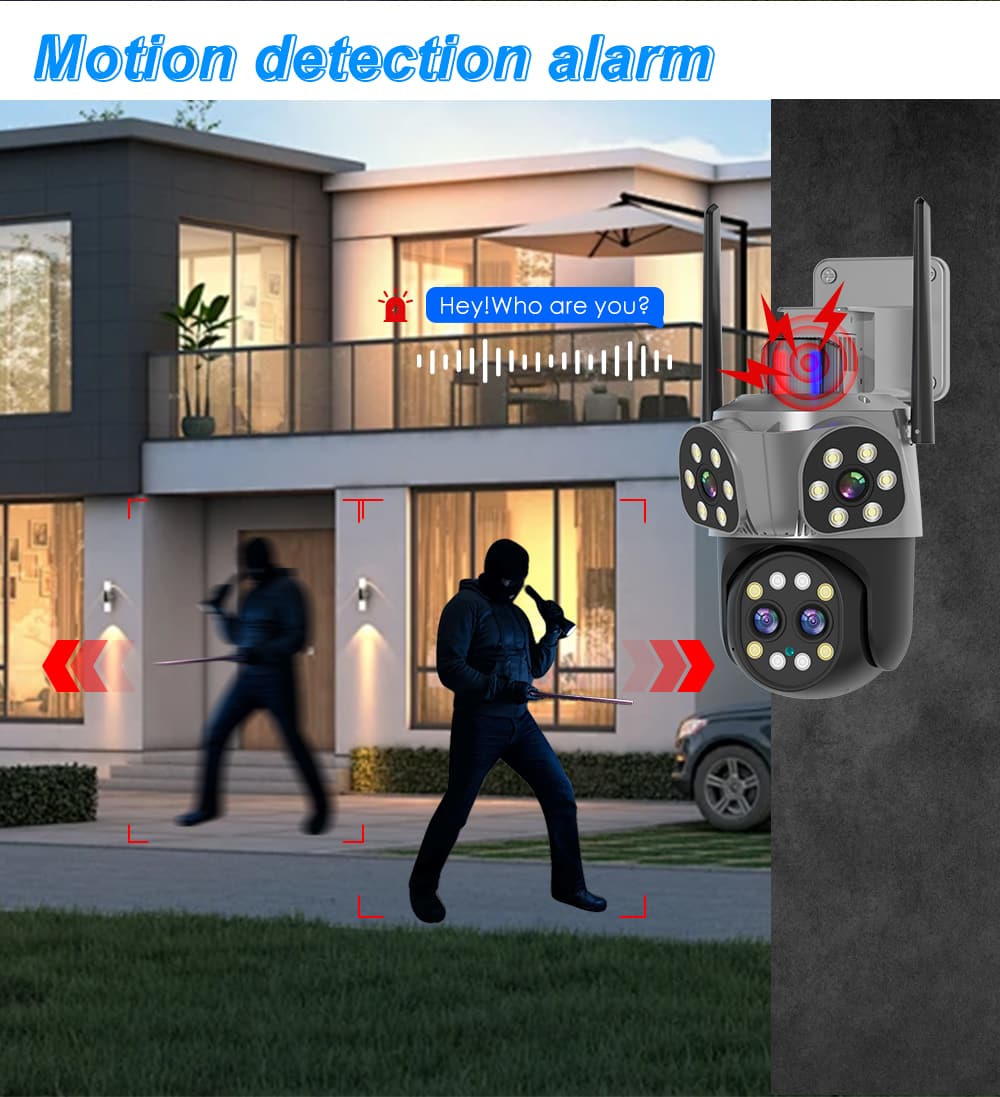

Detection Method: Humanoid Detection, Motion Detection
Detection Distance: 0–20 meters
Detection Angle: 72°
Alarm Mode: Speaker Alarm, Alarm Recording, Information Push, Picture Push, Video Push (Cloud Storage Activation Required)

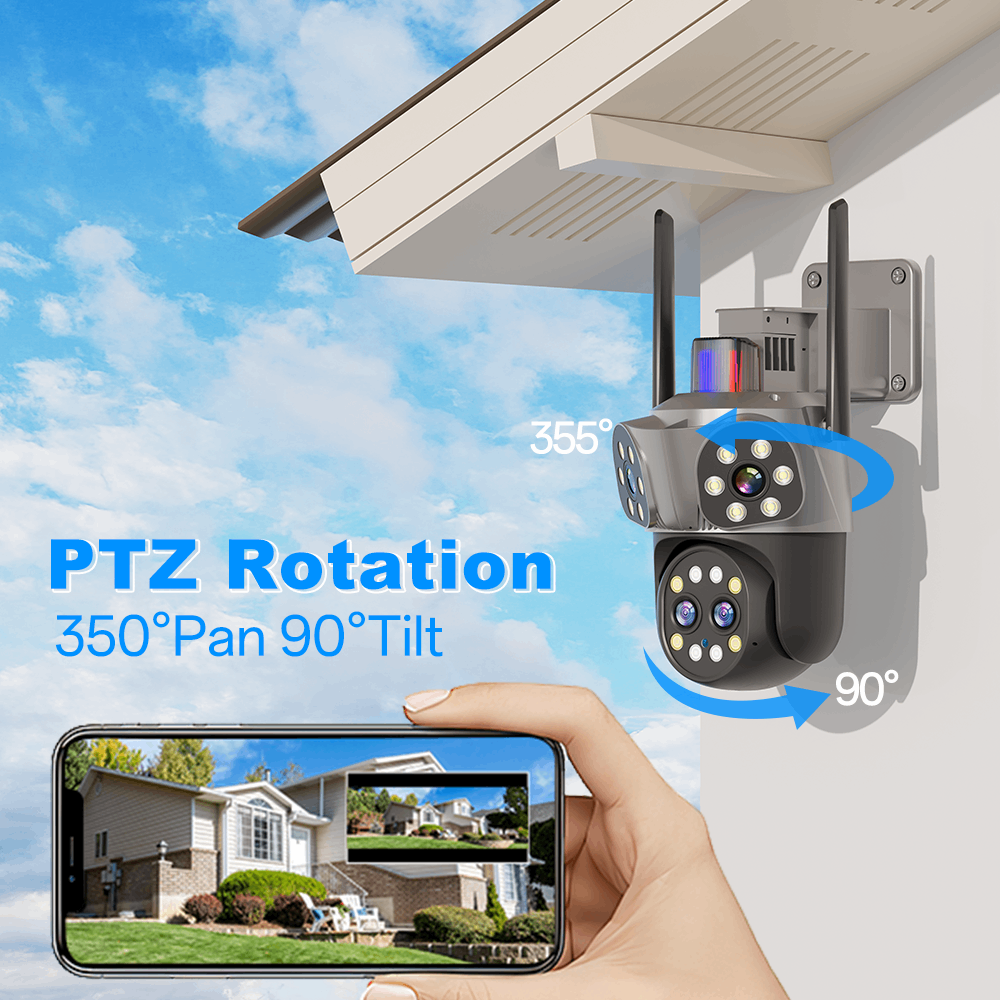

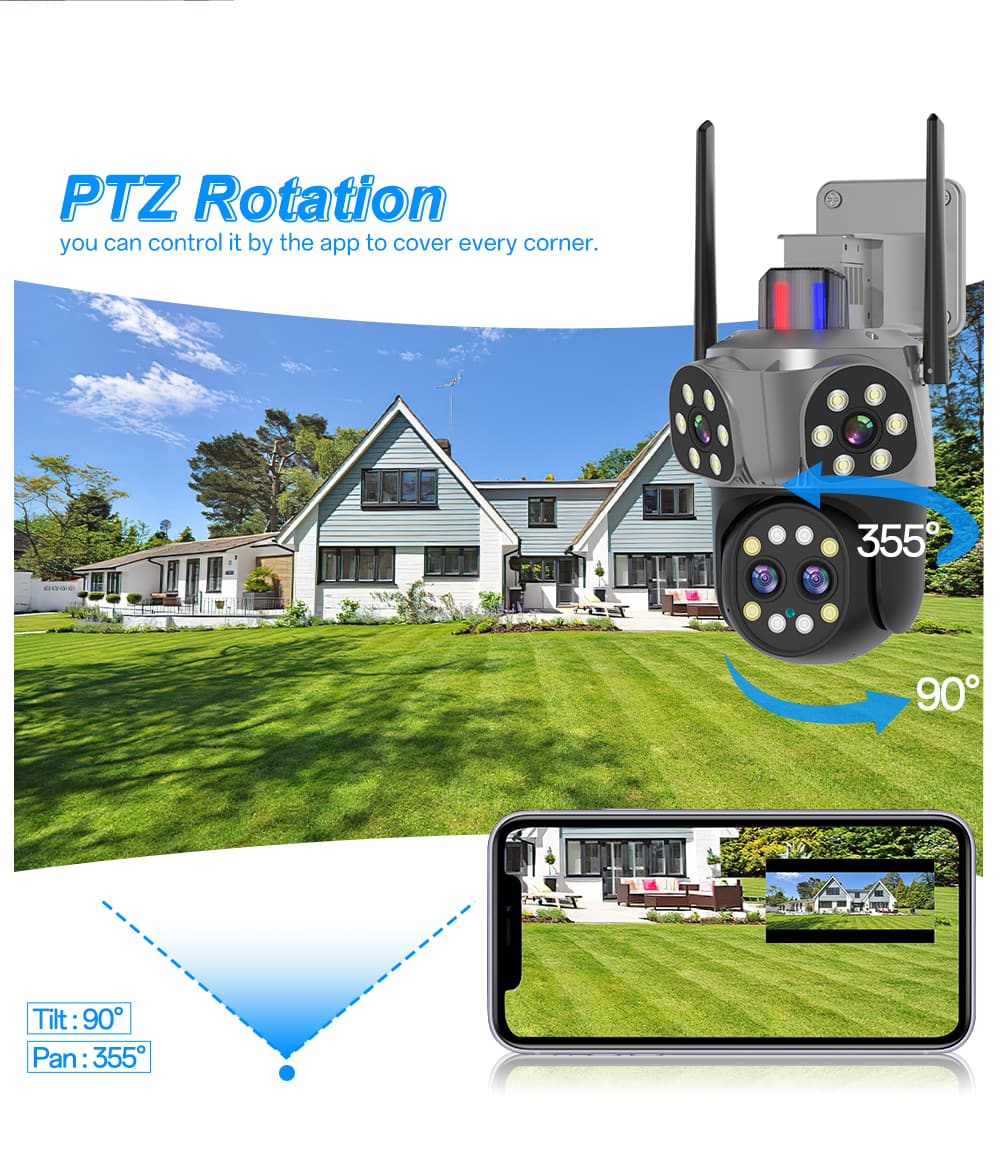

PTZ Gimbal Angle: Horizontal 350°, Vertical 90°
Rotating Speed: Horizontal 30°/sec, Vertical 20°/sec
Night Vision Mode: Full-Color Night Vision Supported
Infrared LED: 16 pcs 20mil, Range 20m
White LED: 16 pcs 1W, Range 15m
Built-in Speaker: 2W
Built-in Microphone: Monitoring Range 10 meters
Lens Focal Length: 4.0 mm + 4.0 mm + 8 mm + 16 mm
Aperture: F2.0
Cloud Storage: Alarm Recording
Local Storage: TF Card (Max 128GB)
Power Supply: DC 12V 2A
Maximum Working Power: <15W
Working Environment: Indoor / Outdoor

Category:

The Q840A 8MP Smart High Definition Outdoor Waterproof Camera is a powerful security solution designed for complete outdoor surveillance. Featuring a dual-chip system (XM650v200SD2 + XM650v200SD1) and a 1/3.2″ 8MP image sensor, it delivers ultra-clear, high-resolution images and videos even at long distances.

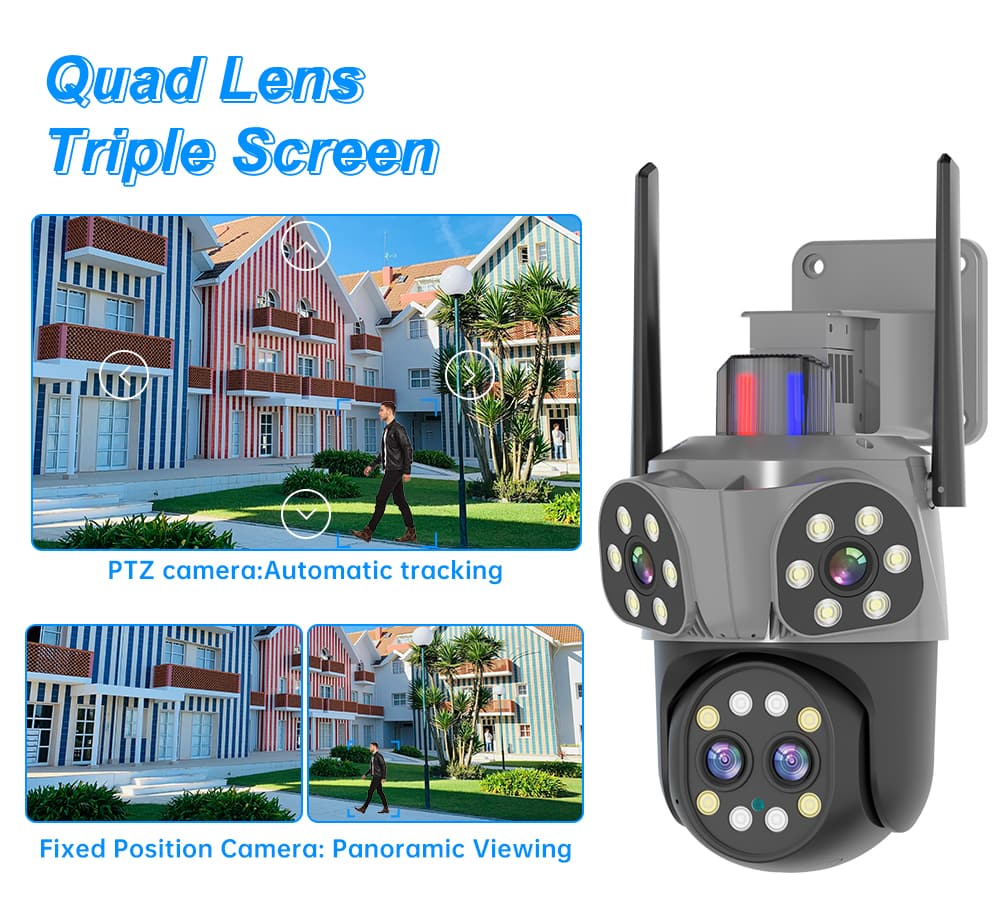

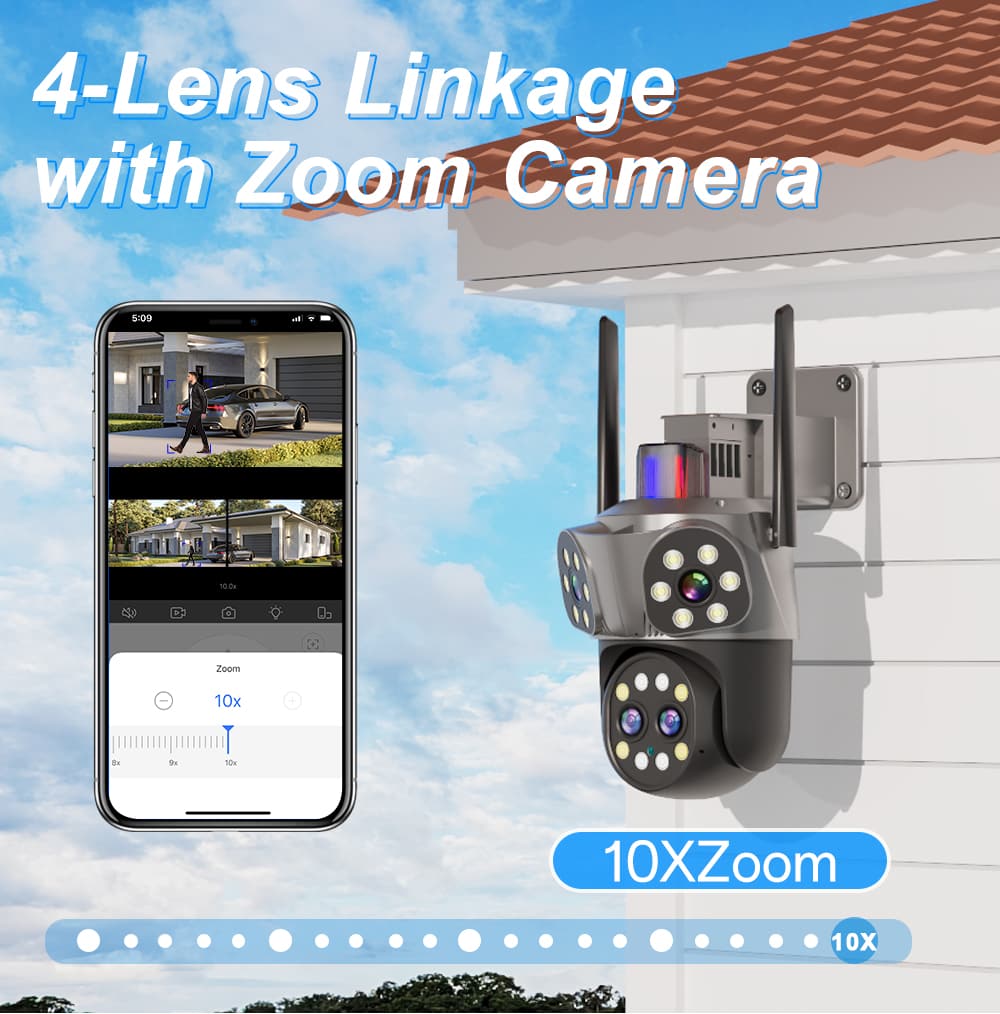

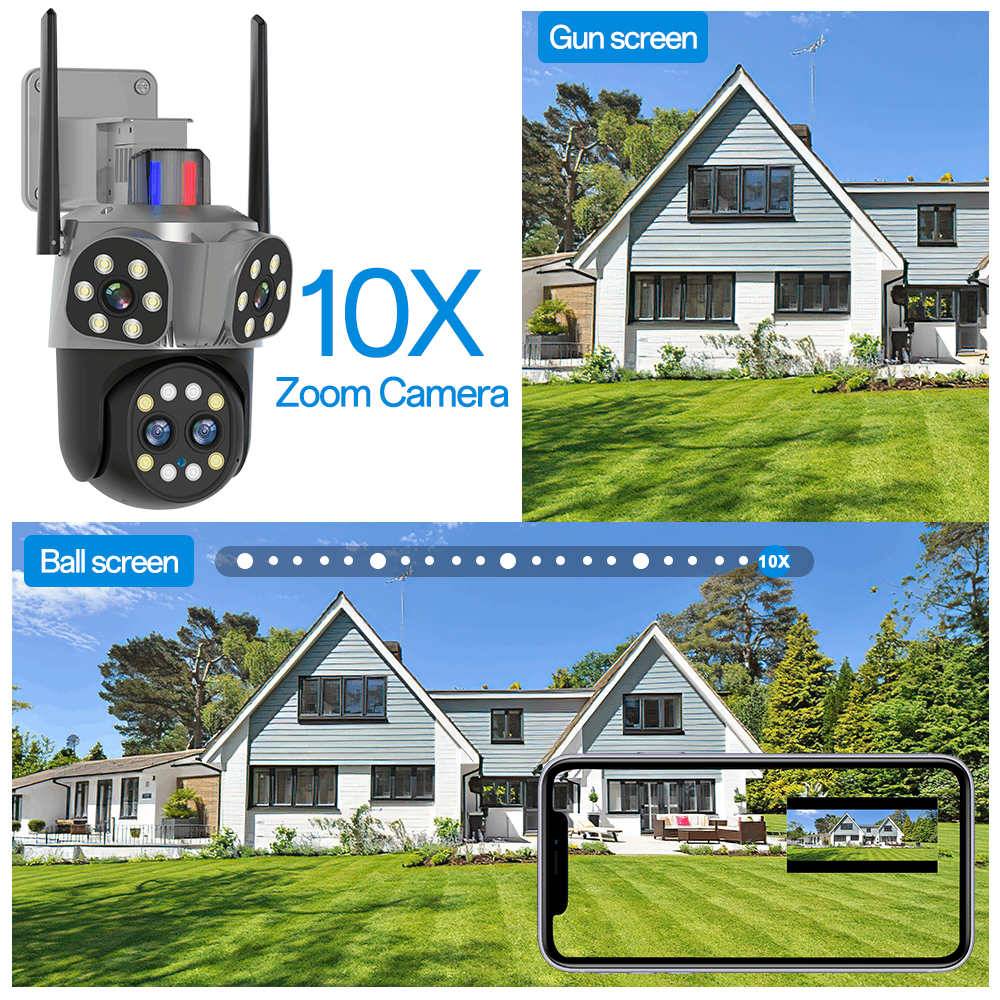

Equipped with intelligent human detection, automatic 360° PTZ tracking, and up-and-down monitoring, the camera ensures precise tracking of moving targets. Its 10× zoom capability combined with 4mm, 8mm, and 16mm lenses allows clear viewing across ultra-long distances, solving the problem of blurred vision in large areas.

Full-color night vision, supported by 16 white LEDs and 16 infrared LEDs, provides clear visibility up to 20 meters in low-light conditions. Two-way audio via the built-in microphone and speaker enables real-time communication through the CareCam Pro app on Android or iOS devices.

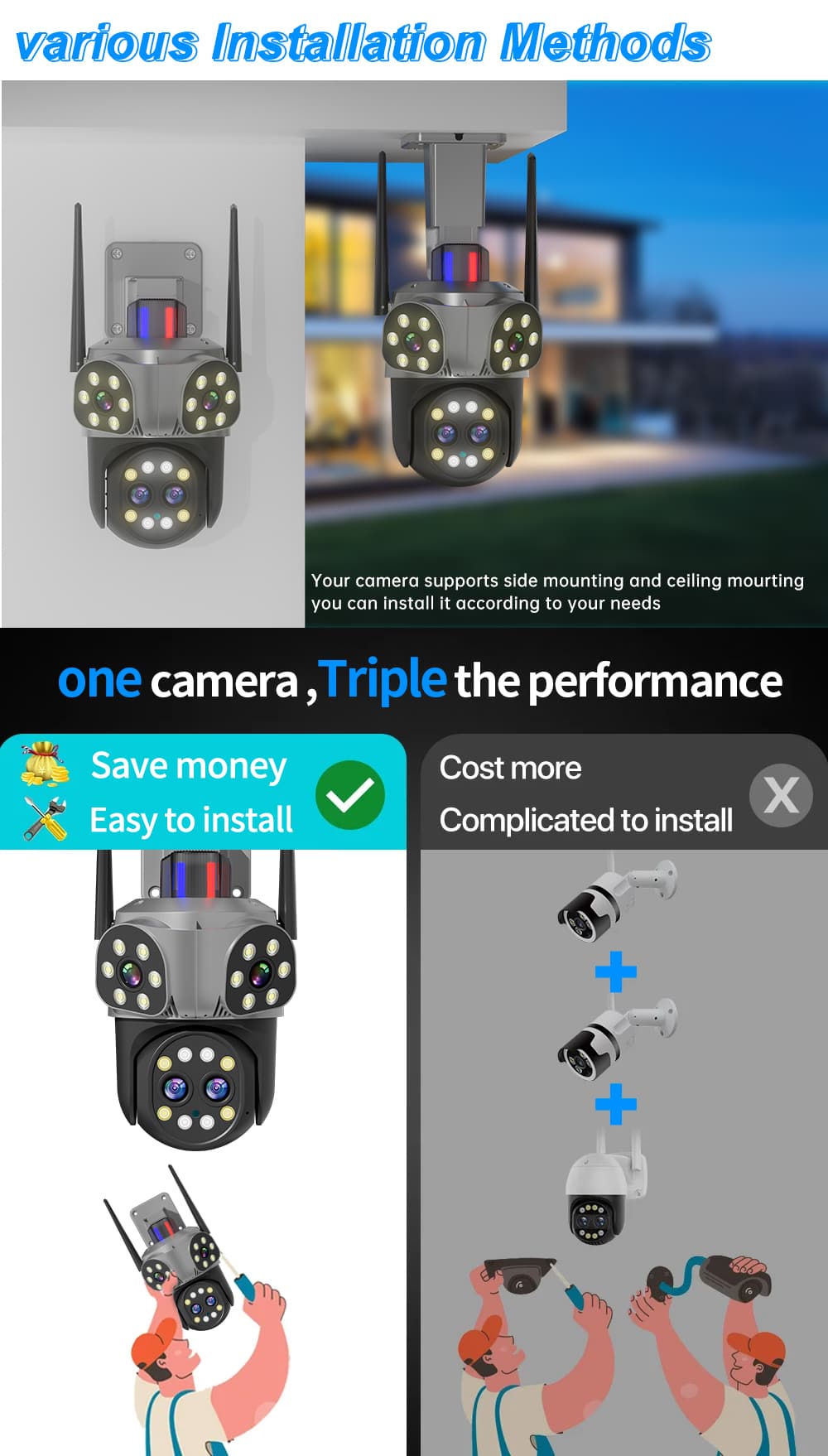

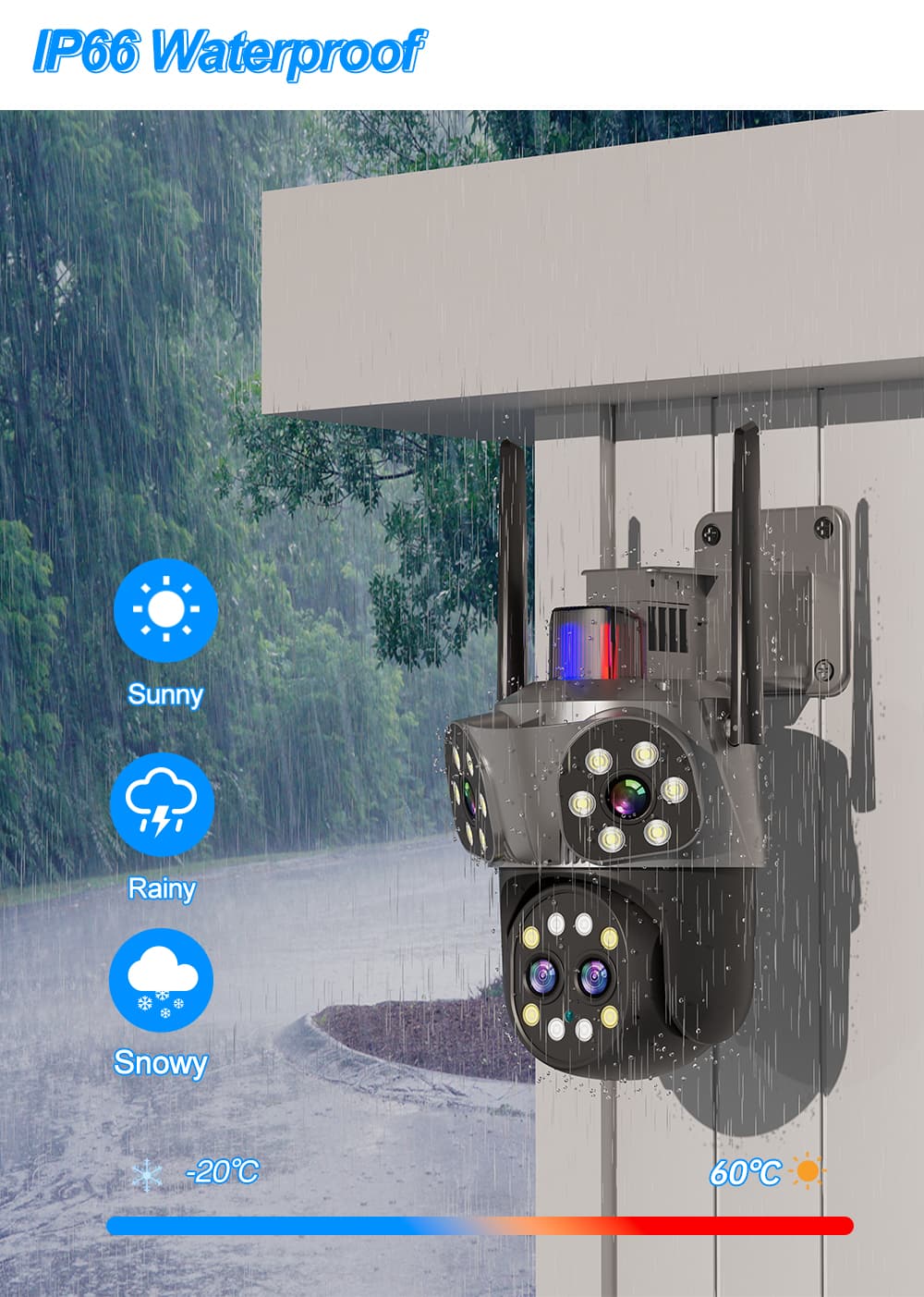

The Q840A supports both local TF card storage (up to 128GB) and cloud storage for flexible and secure video recording. Designed for outdoor use, it offers IP66 waterproof and dustproof protection, adjustable PTZ angles (350° horizontal, 90° vertical), and easy DIY installation. Low power consumption (<15W) and intelligent loop recording make the Q840A an all-in-one smart surveillance solution, ideal for homes, factories, schools, and shopping centers.
